Accelerate up climbs, float through rock gardens, and experience more power, agility and control with this lightweight, full-suspension E-MTB.
Accelerate up climbs, float through rock gardens, and experience more power, agility and control with this lightweight, full-suspension E-MTB.
Giant

Giant Trance X Advanced E+ EL 3 Electric MTB in Gloss Helios Orange

£4,399.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

We want you to be happy with your new bike and accessories. If you've placed an order through our website, you have 30 days from the delivery or pick-up date to return an unwanted item.

HOW TO CANCEL OR RETURN

Using your order confirmation email, please reply, advising which item you would like to cancel / return and a member of the Rider Support team will be in touch.



FAQS

What happens if my item is faulty?

You have a 14 day right to return an item on distance selling applications and a 30 day right to return faulty goods

Can I exchange an item?

Unfortunately we are not able to provide an exchange service. If you have purchased the incorrect size, we will need to cancel to refund and you can then place a new order.

What is the cost to return a Gear item I had delivered to home?

Free, we will email you a returns label. You simply apply to the box and take the parcel to your local DPD drop-off

What is the cost to return an item I collected in store?

You can return in store for free.

Can my bike delivery order be collected from my home?

Yes, our courier collection fee is £30. However, you must use the original delivery packaging - if you do not have the original box, a new one will be sent at an additional cost of £60.

Can my Gear order be collected from home?

Yes, our returns fee is £10

When can I expect a refund?

Giant will issue refunds within two working days from confirmation the store, or distribution centre, has received the returned item. Please refer to your payment provider for their timescales.

What is your returns policy for bikes with an ISP?

We do not accept returns for bikes with an ISP.

Am I able to return a bike after a ride?

We know that sometimes a short ride is what it takes to know if a bike is suitable. However, to be eligible for a full refund, the bicycle and its accessories must be clean and not display any damage or signs of wear, exceeding that which could be expected to establish that the bike is not suitable for the intended purpose.

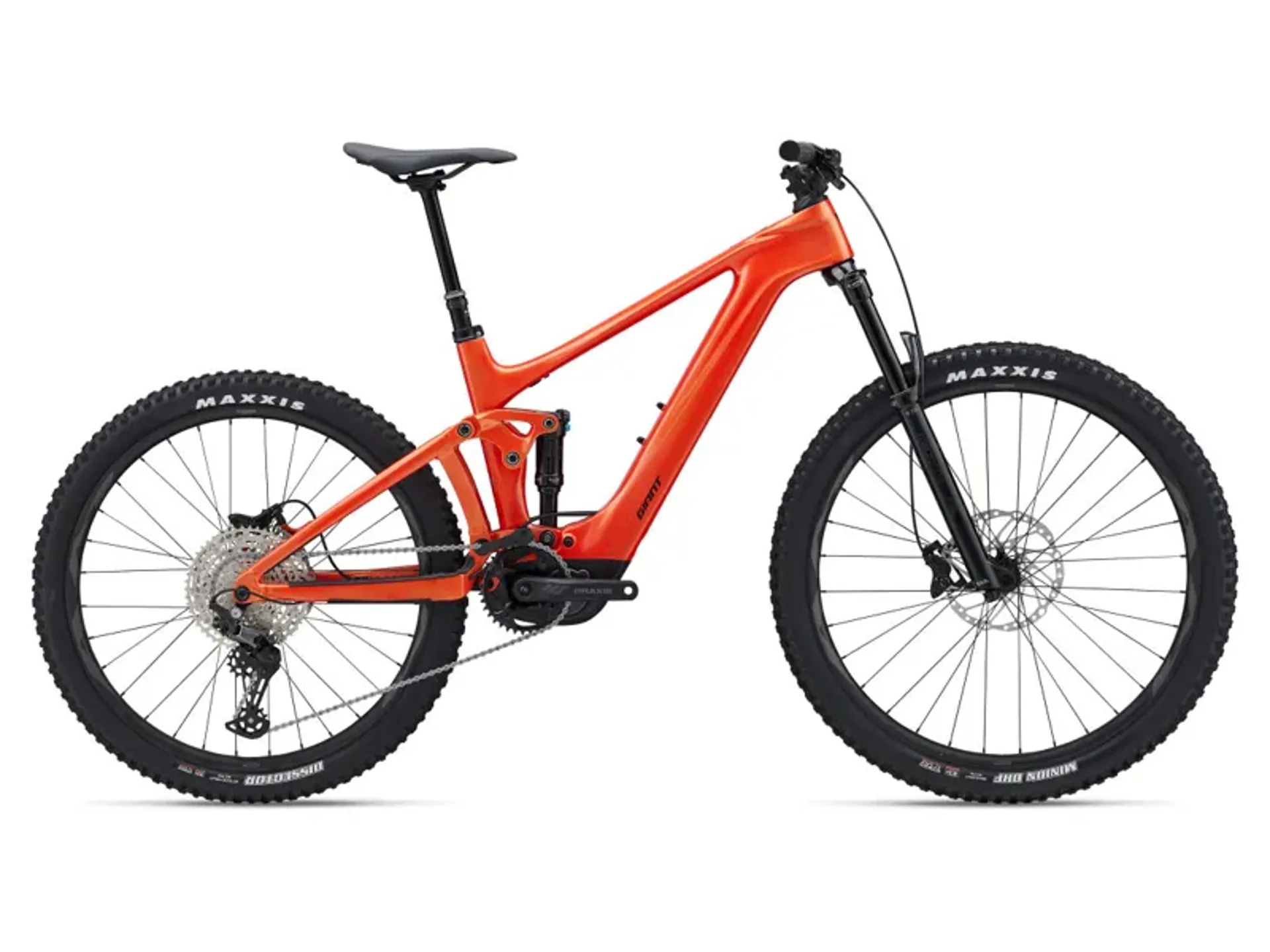

Giant Trance X Advanced E+ EL 3 Electric MTB in Gloss Helios Orange

Season:2024

Brand:Giant

Code:6028033HeliosORG

Accelerate up climbs, float through rock gardens, and experience more power, agility and control with this lightweight, full-suspension E-MTB.

The ultra-slim battery minimises weight so you can ride technical trails the way you always dreamed of.

EnergyPak 400 battery system is ultra slim, delivering all the power you need, but in a smaller package that’s cleanly integrated into the lightweight composite frameset.

RideControl Ergo 3 remote attaches to the composite Giant Contact SLR integrated handlebar. The control can be mounted to either side of the handlebar so you can customise your controls for a clean, uncluttered cockpit.

New SyncDrive Pro Magnesium motor features a magnesium casing that reduces weight by 50g. It weighs just 2.5kg and delivers 85Nm of torque while retaining the instant engagement that characterises SyncDrive Pro motors. It’s also engineered for a reduced noise level and quiet performance.

Technical Information
  • Motor
    Giant SyncDrive Pro2 85Nm, PedalPlus 6-Sensor technology
  • Controller
    Giant RideControl Ergo3, grip integrated remote
  • Display
    Giant RideControl GO, frame integrated LED console Optional wireless ANT+ display
  • Battery
    Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
  • Charger
    Giant EnergyPak 4A smart charger, 60% in 1:45
  • Connectivity
    Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
  • Sizes
    S, M, L, XL
  • Colours
    Gloss Helios Orange
  • Frame
    Advanced-grade composite frame, Aluxx SL-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system
  • Fork
    Marzocchi Bomber Z2 E-Tuned, 29er, 150mm travel, 44mm offset, RAIL damper Sweep-Adj, Kabolt 110
  • Shock
    Fox Float Performance, EVOL Large Volume sleeve, 2pos, 185x52.5mm Trunnion mount, custom tuned, recommended sag: 30%
  • Handlebar
    Giant Contact SL 35 Trail, 35x780mm
  • Grips
    Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL)
  • Stem
    Giant Contact SL 35
  • Seatpost
    Tranz-X Rad+ 30,9mm, 30mm travel adjustable (S:120-150mm, M:140-170mm, L/XL:170-200mm)
  • Saddle
    Giant Romero, Neutral
  • Pedals
    PEDALS NOT SUPPLIED
  • Shifters
    Shimano Deore 1x12
  • Front Derailleur
    MRP HD2 co-moulded chain guide
  • Rear Derailleur
    Shimano Deore
  • Brakes
    Shimano BR-MT420, 4-piston, hydraulic disc,203mm [F/R]
  • Brake Levers
    Shimano Deore, I-spec EV
  • Cassette
    Shimano CS-M6100-12, 10-51T, 12-speed
  • Chain
    KMC e.12 Turbo, EcoProteq, e-bike optimised
  • Crankset
    Praxis N.W. 36T Cold Forged 4130 premium steel Praxis e-Cranks (Q-factor=168, S:160, M/L:165, XL:170)
  • Bottom Bracket
    n/a
  • Rims
    Giant AM30, Tubeless ready, 30mm inner width, 29" [F] / 27.5" [R]
  • Hubs
    Shimano MT410 Boost, Center-Lock, 110x15 [F] 148x12 Shimano Micro-Spline Drive Body Thru-axle [R]
  • Spokes
    Sapim E-Lite [R] Race [F], e-bike optimised
  • Tyres
    Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F]Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R]
  • Extras
    Tubeless kit (liquid, valves, levers, manual, tool) Inner tube supplied
  • Lighting
    Optional:- Giant Recon series e-bike lights available and direct connectable
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
